Whether your application is 10 HP or 10,000 HP, proper monitoring of your lubrication system is critical to guarantee optimum function and fail-safe protection. Our monitoring solutions are designed for applications large or small, from simple divider block mounted no-flow devices, to full featured PLC integrated devices that simultaneously record and report flow rate data for multiple zones.

Download our Monitoring products data sheet HERE.

Wizard Monitor

Our Wizard Monitor provides cutting edge delivery protection and monitoring for up to four lubrication zones. The Wizard has a bright, easy-to-use touch screen interface, integrates seamlessly with your plant control systems, and provides real time flow rate information and rate data logs for later analysis.

Features & Benefits

  • Tracks and displays total oil delivery for up to four zones
  • Simple programming and setup with 3 ½ ” color LCD touchscreen
  • Compatible with all PLC systems via MODBUS interface
  • Continuous log file recording with USB export
  • Programmable zone warning and zone failure alarm
  • Enables automatic fail-safe shutdown

Details

Power supply
90-264 VAC, 47-63 Hz / 12-48 VDC 15 W max

Inputs
4 Zone proximity switches (low voltage dry contact)
1 Total display switch
1 Arm/disarm circuit

Outputs
4 Zone alarm relays 250 V max 5A (NO) / 3A (NC)
1 Power fail relay 250 V max 5A (NO) / 3A (NC)

Communication
1 RS485 Modbus RTU
1 10 / 100 Ethernet (Web server + MODBUS TCP / IP)

Storage Onboard
512Mb; minimum 2 years logging 1 entry per minute
External USB – CSV file format

Magnetic Proximity Switch

The magnetic proximity switch is a crucial component of your fail-safe monitoring system. The MPS detects each divider block cycle and sends a signal to your Wizard Monitor or PLC control system. Our MPS has a patented spring- free operation for peerless, problem free reliability.

Features & Benefits

  • Anodized aluminum body and stainless steel wetted parts
  • Spring-free design eliminates wear parts
  • Fully enclosed design eliminates leak paths
  • Removable magnetically captive pin for easy cleaning and operation verification
  • Fully enclosed reed switch and PVC jacketed cable
  • Easily separable magnet housing
  • Normally closed switch design for simplified troubleshooting and circuit verification
  • Precision-manufactured reed switch designed for millions of closures at low voltage
  • Follows piston travel and reports each block cycle to the Wizard Monitor
  • US Patent 8575921

Details

Switching voltage (DC or peak AC) 200V

Switching current (DC or peak AC) 0.5A

Carry current (DC or peak AC) 1.25A

Static resistance (@ 0.5, 10mA) 200

Insulation resistance (@ 100V) 1010

Sensor resistance (@ 40% overdrive) 480 mOhm

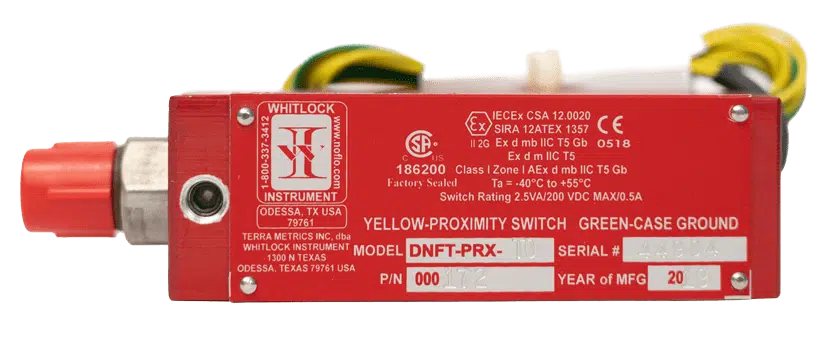

Digital No Flow Timer

The DNFT is a simple, compact, and reliable monitoring device that provides real time fail-safe protection for your critical machinery. The DNFT installs directly to your divider block and provides single zone, fail-safe protection via a simple open/closed relay.

Features & Benefits

  • Simple and reliable fail-safe protection
  • Battery powered for easy installation
  • Compatible with all high pressure divider block systems
  • Flashing light indicates each cycle
  • Integrates with PLC controls via open/closed relay
